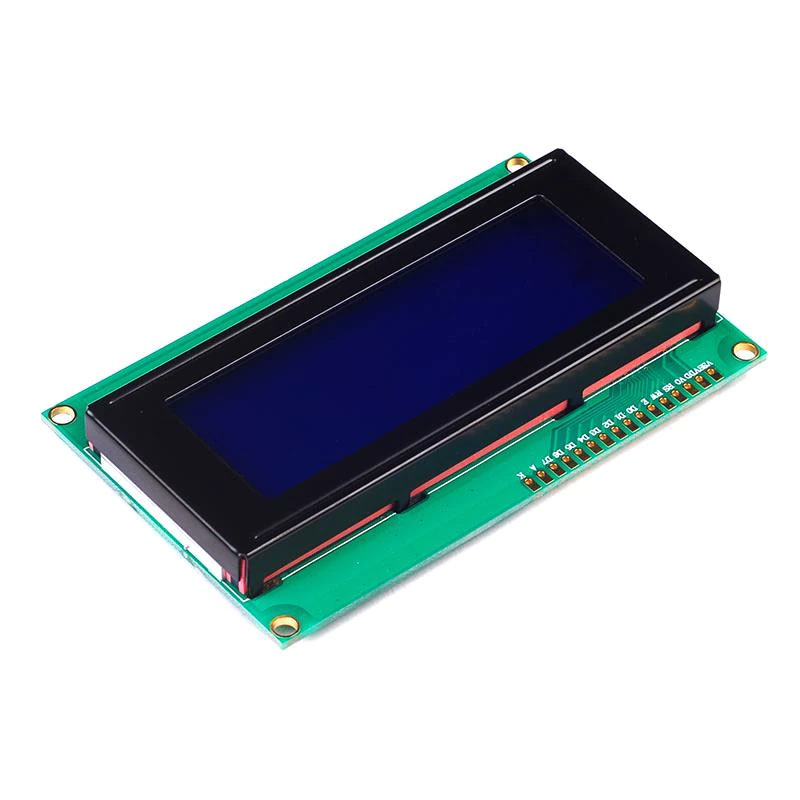

LCD2004A 20x4 Character LCD Display Module

The 2004A character LCD module is designed to display letters, numbers, symbols, dot matrix. It can display 4 lines of 20 characters. Support 4-bit and 8-bit data transfer mode. Offers 5x7 matrix + cursor display mode. Providing display data buffer DDRAM, character generator CGROM and CGRAM. CGRAM can be used to store up to eight 5x8 dot matrix character font data graphic own definition. Provides a rich instruction set: clear display, cursor back to origin, display on / off, cursor on / off, display character blink, cursor shift, display shift and so on.

• Module size(W x H x T): 98.0 x 60.0 x 14.0mm
• Viewing area(W x H): 76.0 x 26.0mm
• Character size(W x H): 2.94 x 4.74mm
• Dot size:(W x H): 0.54 x 0.54mm
• LCD type & color: STN(Blue), FSTN
• View angle: 6 O\'clock
• Display type: positive / negative type
• Control IC & package: KS0073 or EQV, COB
• Operating temperature: -20°C - +70°C
• Storage temperature: -30°C - 80°C
