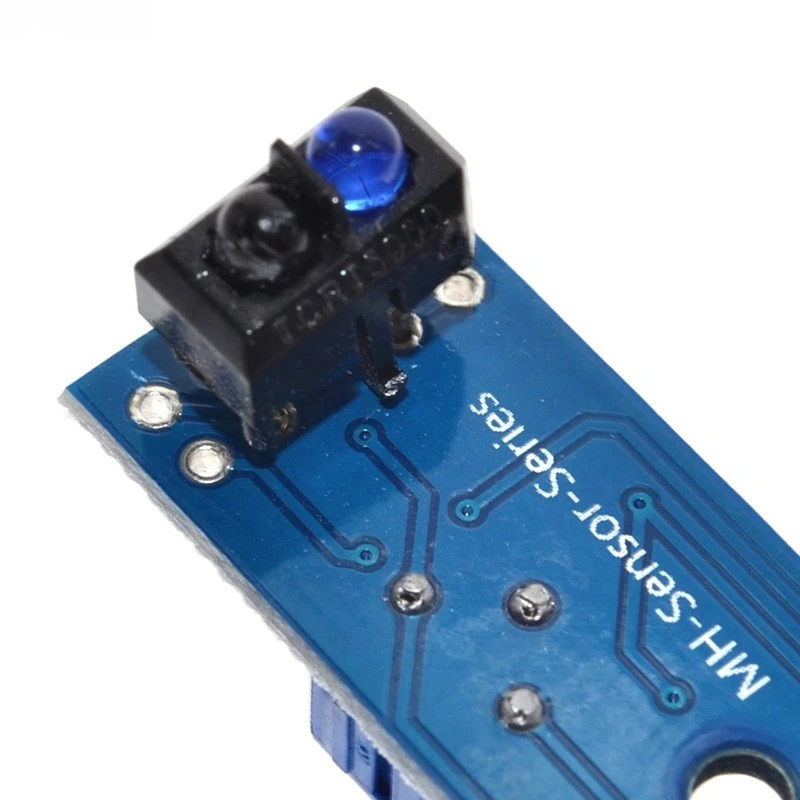

TCRT5000 Tracing Infrared Reflectance Sensor

TCRT5000 Tracing Infrared Reflectance Sensor Module เป็นเซนเซอร์ที่ใช้เทคนิคแสงอินฟราเรด (Infrared) ในการตรวจจับวัตถุหรือฝ่ายสะท้อนของแสง IR ซึ่งทำให้มันเป็นที่นิยมสำหรับการสร้างโรบอทติดตามเส้น หรือใช้เป็นเซนเซอร์ตรวจจับวัตถุในระยะใกล้

Product Usage:

1. Electricity meter pulse data sampling
2. Fax machine shredder paper detection
3. Obstacle detection
4. Black and white line detection

product description:

1. Using TCRT5000 infrared reflection sensor
2. Detection reflection distance: 1mm~25mm applicable
3. Comparator output, clean signal, good waveform, strong driving ability, exceeding 15mA.

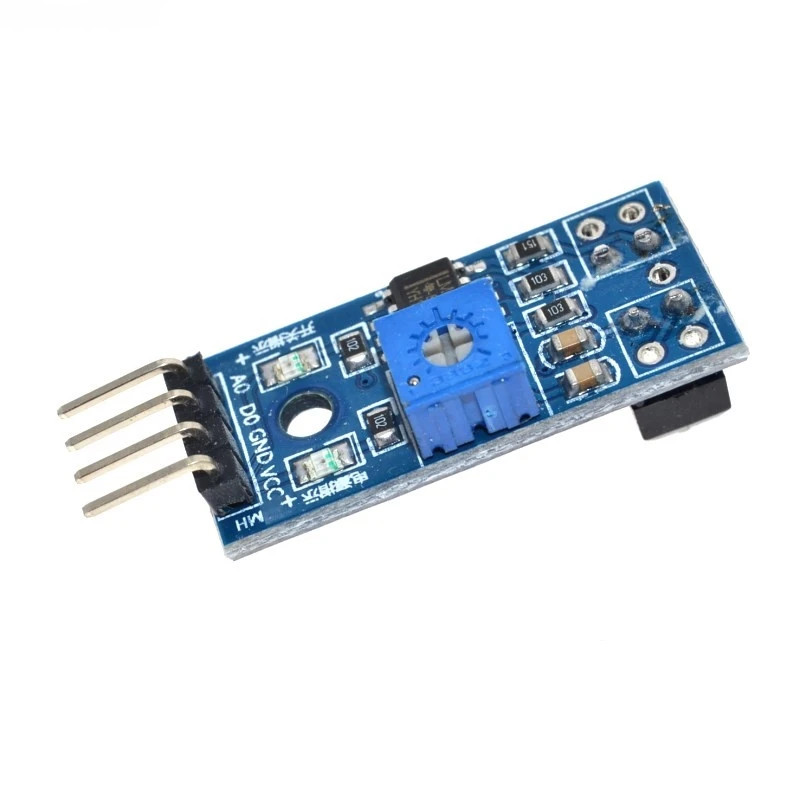

4. Distribution potentiometer to adjust sensitivity
5. Working voltage 3.3V-5V
6. Output form: digital switching output (0 and 1)
7. Equipped with fixing bolt holes for easy installation
8. Small PCB size: 3.2cm x 1.4cm
9. Use wide voltage LM393 comparator

Features:

The infrared emitting diode of the TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or are reflected back but the intensity is not strong enough, the infrared receiving tube is always off. At this time, the output terminal of the module is high level, indicating The diode is always extinguished; when the detected object appears within the detection range, the infrared ray is reflected back with sufficient intensity, and the infrared receiving tube is saturated. At this time, the output terminal of the module is low level, indicating that the diode is lit.

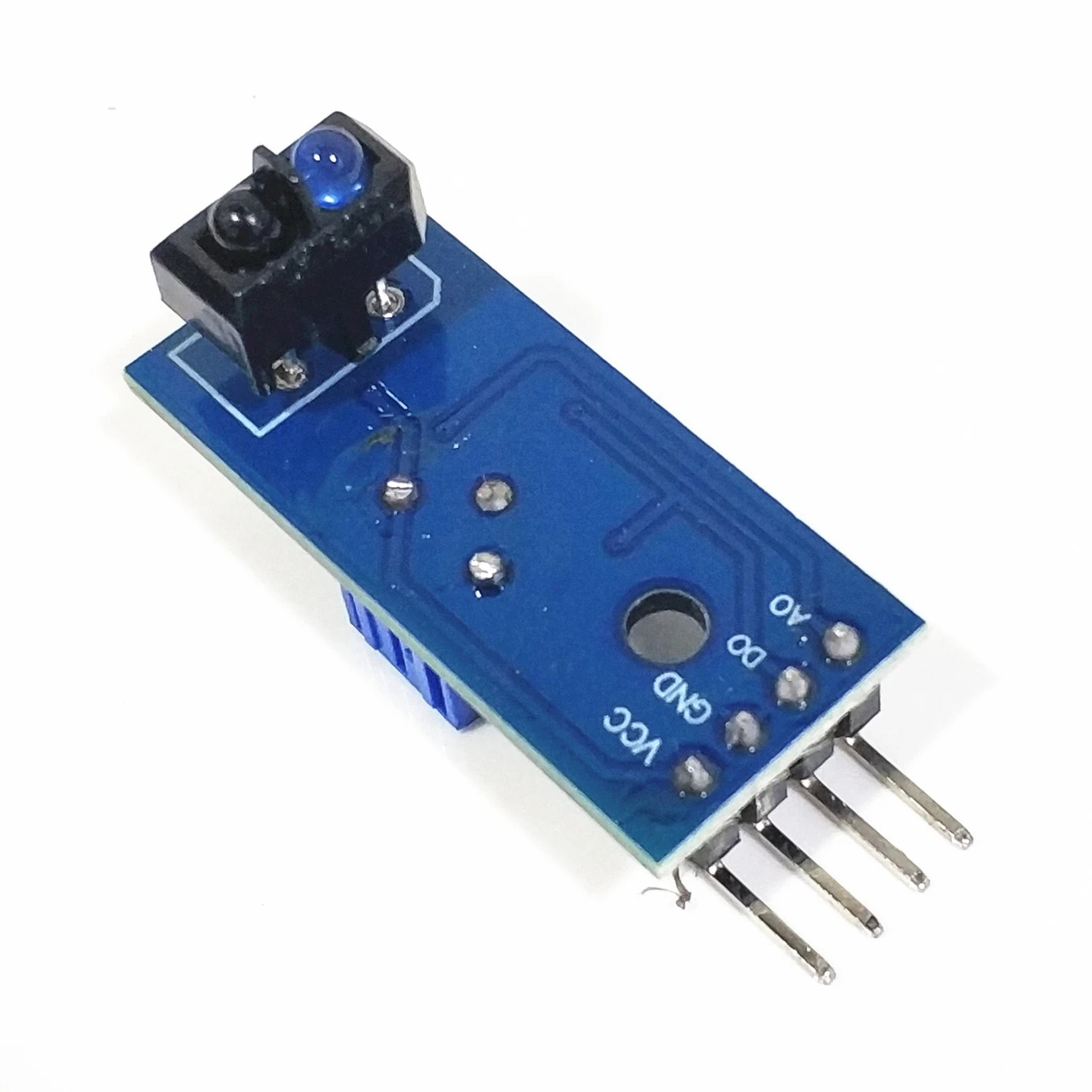

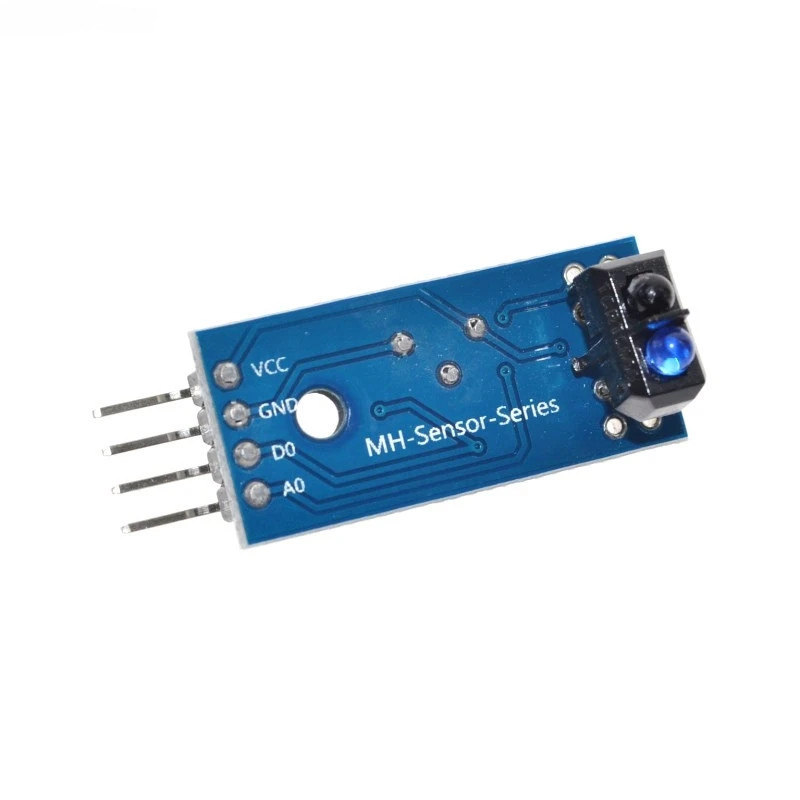

Wiring:

1. VCC: Connect to the positive pole of the power supply (3-5V)
2. GND: Connect to the negative pole of the power supply
3. DO: TTL switch signal output
4. AO: Analog signal output (different voltages are output at different distances, this pin generally does not need to be connected)
