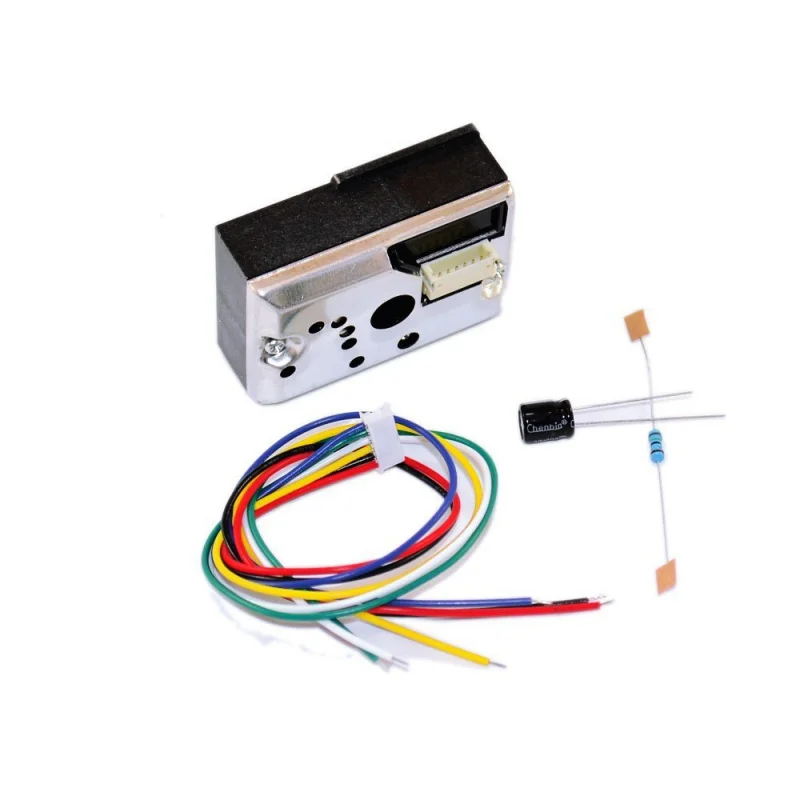

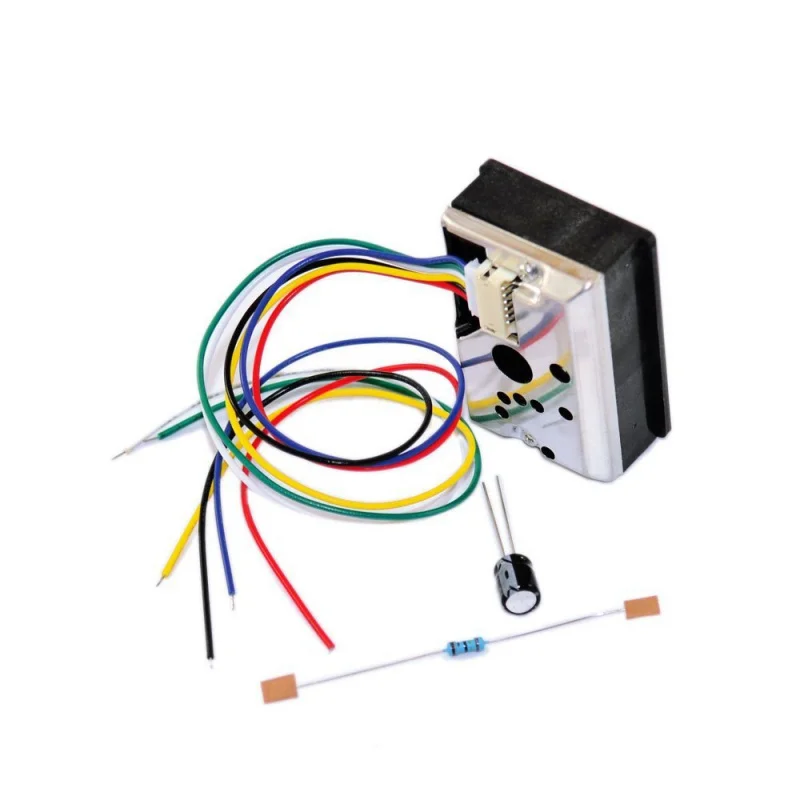

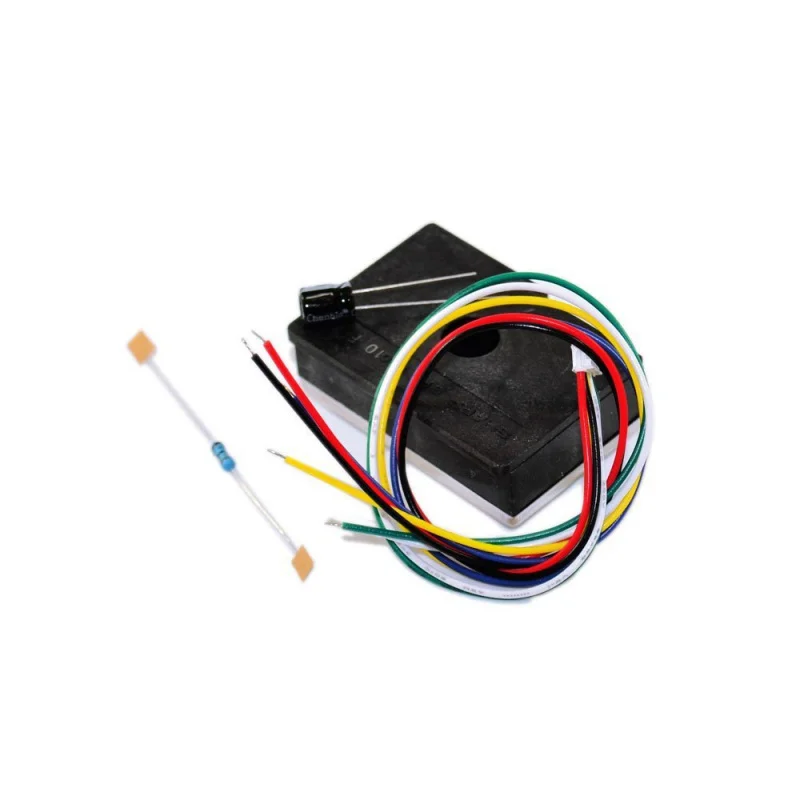

Dust Sensor PM2.5 GP2Y1014AU Module

Dust Sensor PM2.5 GP2Y1014AU Module

1. Introduction to Dust Sensor GP2Y1010AU:
It can measure particles as small as 0.8 microns and detect smoke and pollen from tobacco, house dust, etc. It is small in size, lightweight, and easy to install

2. Main parameters of dust sensor GP2Y1010AU:

1) Dust sensor GP2Y1010AU
2) Sensitivity: 0.5V/(0.1mg/m3)
3) Output voltage (without dust): 0.9V (TYP)
4) Current Consumption: 11mA

3. Dust sensor GP2Y1010AU typical application:
Freshener, Ventilation Conditioner, Ventilation Fan and Other Products
GP2Y1010AU0F is an optical quality sensor designed to detect dust particles in. It has infrared light-emitting diodes and phototransistors diagonally placed inside, allowing it to detect reflected light from dust particles in, even very small ones like tobacco smoke particles. It is commonly used in purification systems.

sensor has a very low current consumption (20mA, typical value 11mA) and can be used up to 7VDC.sensor output is an analog voltage, and its value is directly proportional to dust concentration.

Can measure particles above 0.8 microns, sense tobacco smoke and pollen, house dust, etc. Small size, light weight, easy to install, widely used in purifiers, conditioners, ventilation fans, and other products

Sensitivity: 0.5V/0.1mg/m3
